Trailer Mounted Light Tower and Generator [New Products]

Nov. 5, 2014

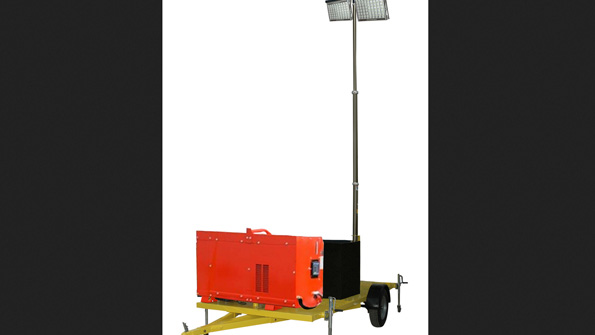

Larson Electronics’ 1,600 watt high output LED light mast (WCDE-7-PLM30-4X400W-LED) is powered by a 7kw brushless water cooled diesel generator. This trailer mounted light tower and generator set comes equipped with a 150 gallon fuel tank that will run continuously without refueling for up to 225 hours consecutively. The four 400 watt lamps included with this unit produce a combined total of 208,000 lumens and is a direct replacement for 4,000 watt metal halide light plants. The entire assembly is connected to the power source via a 4-switch control box. Each light head is on an individual circuit and can be powered on or off independently of the other light fixtures. The telescoping pneumatic mast that extends and lowers these lights can reach 30 feet in height with the use of a 220 volt air compressor. The compressor is equipped with a pressure switch that maintains the pressure within the mast. Once the mast is deployed from the component control center, its operation is automated. The air compressor will turn on briefly when the pressure in the mast falls below the fully inflated threshold. In normal operation, the air compressor may turn on once every few days for about five minutes to top off the mast.

Larson Electronics
