Pump-Per-Point Lift System

Nov. 2, 2021

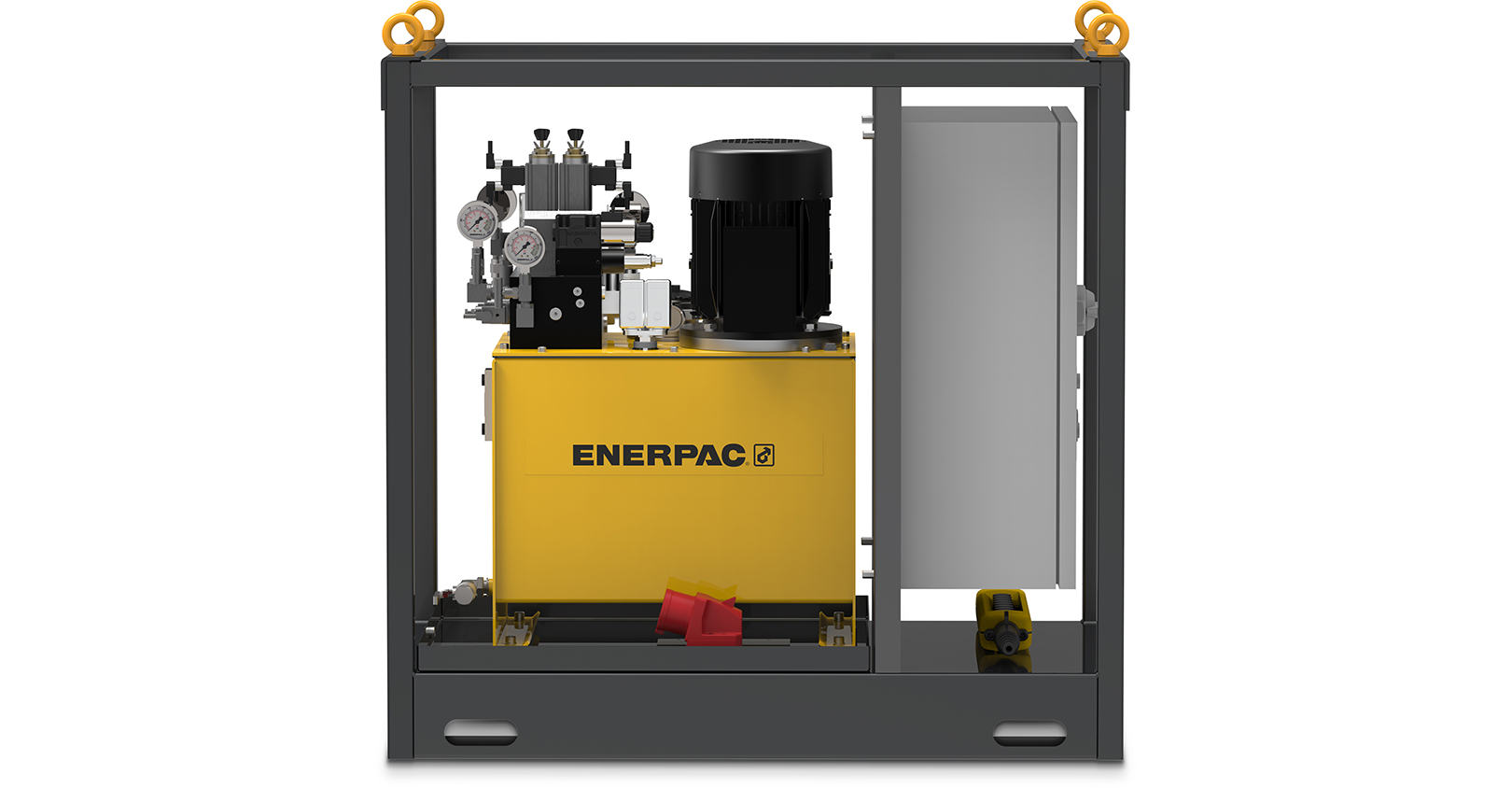

Providing speed for heavy lifts, the EVO-P Pump-Per-Point Synchronous Lift System from Enerpac allows for precise multi-point lifting and positioning of large structures.

Providing speed for heavy lifts, the EVO-P Pump-Per-Point Synchronous Lift System allows for precise multi-point lifting and positioning of large structures.

The system features individual hydraulic pumps for each lifting point. This reduces distance from pump to cylinder, minimizing hose lengths and risk of leaks. The hydraulic pumps are two-stage, which are ideal for fast retraction and repetitive operations.

The combination of a higher flow rate per cylinder and high accuracy means lifts get completed sooner without sacrificing quality. The EVO-P features an improved speed option for large cylinders with longer strokes, and with its high oil capacity in each cylinder, it eliminates the need for custom reservoir designs.

The variable-frequency drive (VFD) motor controls lifting accuracy and minimizes starts and stops. This results in faster and smoother lifts—ideal for sensitive structures. The VFD speed control allows flexibility when using multiple cylinder capacities on the same lift.

The pumps can be used as standalone high flow hydraulic power units with simple pendant operation.
