RFID R/W Units

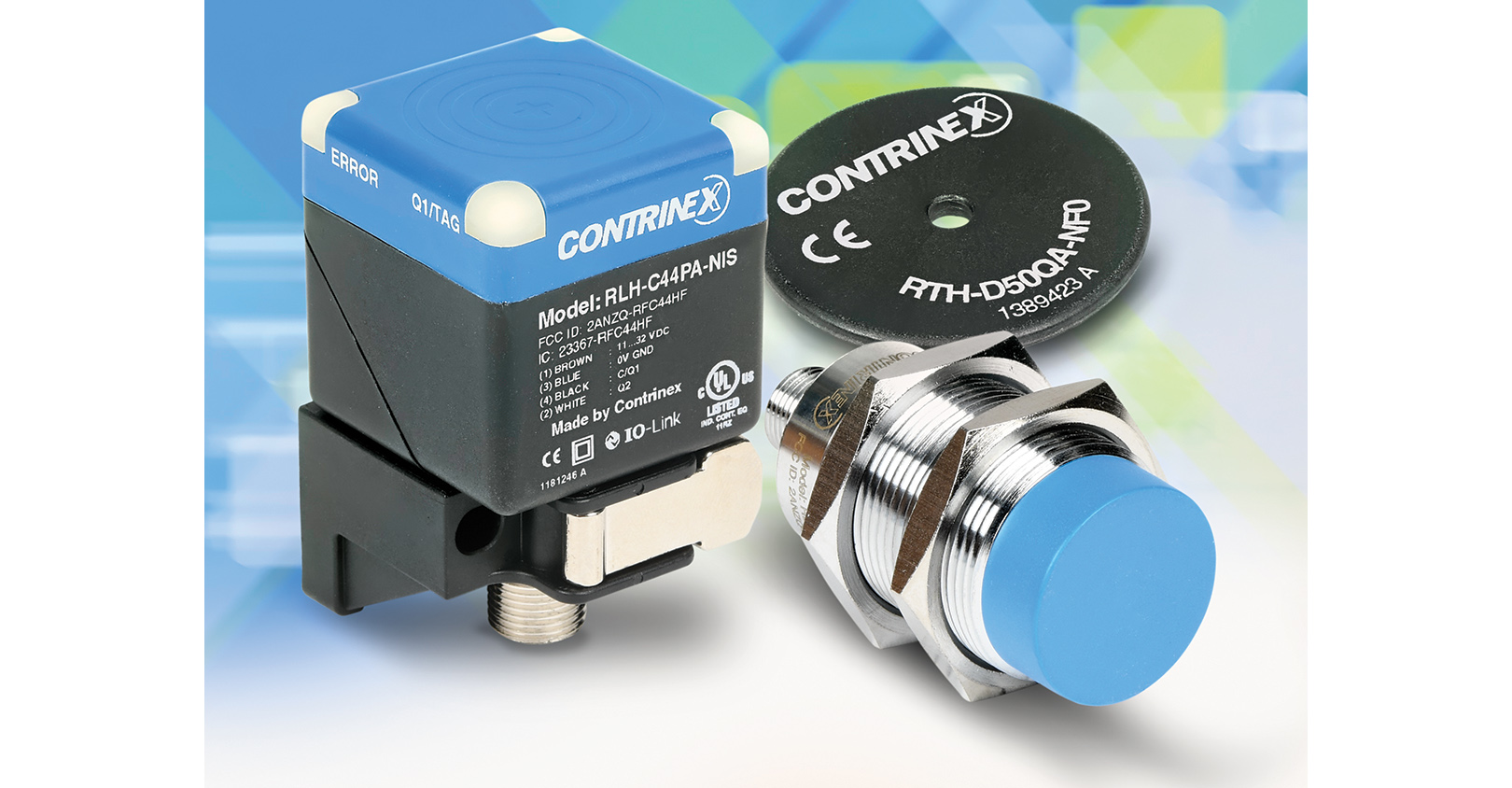

The Contrinex RFID Read/Write modules are available in 18 mm or 30 mm diameters and a 44 x 44 mm cube style with transmission ranges of up to 78 mm. These units can communicate to a PLC or other intelligent device using the popular IO-Link protocol.

RFID tags are available in 9 mm, 16 mm, 20 mm, 30 mm, and 50 mm sizes with user memory from 316 to 2,000 bytes using either EEPROM or FRAM memory. A high-temperature tag model is also available, and all products are IP67 and IP68/69K rated.
