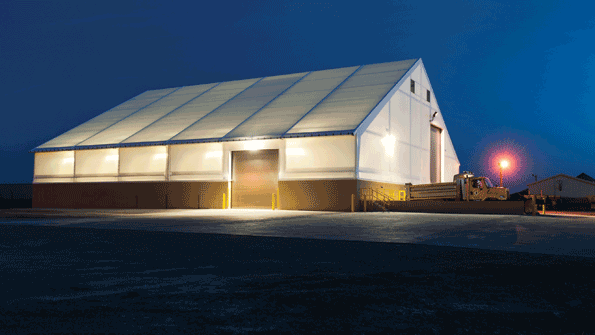

fabric tension warehouses go green

STORE: Fabric Warehouses Redefine Green

April 15, 2013
Today's tension fabric buildings offer energy-efficient advantages that pay off in green benefits—both environmentally and economically.

The green movement has gained considerable traction in the design of new buildings, from office properties and residential construction to warehouses and tension fabric storage facilities.

See Also: Warehousing & Disbribution Management

The hallmark of green building comes in the form of LEED (Leadership in Energy and Environmental Design) certification through the U.S. Green Building Council, which is achieved by meeting various design and operating criteria. But even for those building owners who choose not to go through the LEED certification process, greater energy efficiency and the subsequent reduction in operating expenses have become their highest priorities when erecting a new building.

Naturally Green Fabric

For storage structures, warehouses and other locations where goods are handled, a certain level of energy efficiency can be achieved by virtue installing a building with a tension fabric roof. The natural properties of polyvinyl chloride (PVC) and polyethylene (PE) fabrics continue to improve, making them suitable for green-conscious building users.

The primary advantage of these structures from a sustainability standpoint is that fabric offers a high solar reflectance, keeping the roof cooler and reducing the heat island effect in the area by reflecting sunlight's heat away from the building. Along with reflectance, tension fabric's high thermal emittance contributes to the roof absorbing less heat. During peak summer weather, these properties can combine to keep fabric roofs about 50 to 60 degrees cooler than roofs built with conventional materials, thereby reducing the need for temperature control measures inside the building.

Although fabric roofs are reflective, they also offer up to 12% translucency to allow natural light to permeate the structure. Direct sunlight offers about 10,000 footcandles of illumination, so even at 5% translucency, a fabric roof will let approximately 500 footcandles into a building on a sunny day — well above the minimum 20-footcandle guideline for lighting inside a warehouse.

Most structures will still need artificial lights for nighttime work and to provide adequate illumination on stormy, overcast days, but during normal daylight hours, fabric roofs effectively eliminate the need for artificial lighting. By taking advantage of natural sunlight, tension fabric can help reduce the electricity bill and make a building more energy efficient. These benefits also help to rapidly accumulate points on the path to LEED certification.

Sustainable Engineering

Though tension fabric has always provided green benefits, other aspects of sustainability in tension fabric facilities have come along more recently. The use of structural steel beams rather than hollow-tube, open web-truss framing provides the rigid-frame engineering to allow more design flexibility in customizing the size and alignment of a fabric building. It also allows builders to incorporate additional features to make the structure more operationally and energy efficient.

The rigid frame is a more traditional architectural design that gives a fabric building significantly more strength. That makes it easier to add items like interior fabric liners and insulation to a structure's roof and sidewalls. A certain temperature control barrier can be achieved simply by adding a liner to the main fabric skin. The liner can also be combined with insulation material to create a system with an insulation value of up to R-40. This level is capable of meeting almost all relevant energy codes in the country, providing significant heating and cooling cost savings.

Building users interested in having insulation and natural light can get both by incorporating a fabric skylight. A given insulation package may dictate covering much of the structure's translucent fabric, but building manufacturers can add the insulation required to achieve energy codes while still leaving a large enough portion of uncovered fabric as a skylight to provide ample illumination levels inside.

Another feature affecting a fabric building's interior environment is ventilation, which can be accomplished through passive or mechanical means. Fans or heavy-duty systems can be mounted on a rigid frame structure if necessary, but users can also choose a natural gravity ventilation system that relies simply on the movement of hot air.

As hot air rises, it works with pressure intakes around the perimeter of the building at the base and a gravity ventilator at the ridge to create circulation inside the building. By providing a natural intake for fresh air and an evacuation point for fumes without the need for powered equipment, users can save on energy consumption and operating costs.

In addition to taking advantage of potential energy savings, some building owners will opt to create their own power using solar panels. This makes them even less dependent on outside power and, in some cases, allows them to become self-sufficient by fulfilling all of their own energy needs.

An emerging trend still being tested by some industry manufacturers involves the use of a thin-filmed photovoltaic that can be adhered directly to the building's fabric panels. A less sophisticated system for buildings looking for solar heating in the winter uses perforated metal to capture hot air in a cavity and bring it into the structure. Traditional crystalline or silicon panels can be incorporated within a building design as well.

In addition to being inherently energy-efficient, rigid-frame style tension fabric warehouses also tend to make responsible use of existing resources. The structural steel I-beams in a typical rigid frame fabric building contain almost 90-percent recycled steel. Buildings can also be fitted with basic gutters and downspouts to collect rain runoff into cisterns for later use around the facility when water is needed.

Just Getting Started

Although LEED has been around in one form or another since 1998 and there's certainly a keen awareness of green buildings among the general public, most industries still find themselves abiding by the 80/20 rule — where the 20% of building users and manufacturers who recognize the importance of energy and resource management are trying to drag the other 80% along for the ride.

While many will never see the value in going through LEED certification and putting a plaque on the wall to promote their commitment to sustainability, the long-term energy savings associated with sustainable structure design will contribute both to the environment and to a company's bottom line.

Tom Ruprecht is director of Legacy Building Solutions (www.legacybuildingsolutions.com), which introduced structural steel framing to fabric buildings.
