Bulk Bag Discharging System [New Product]

Sept. 4, 2014

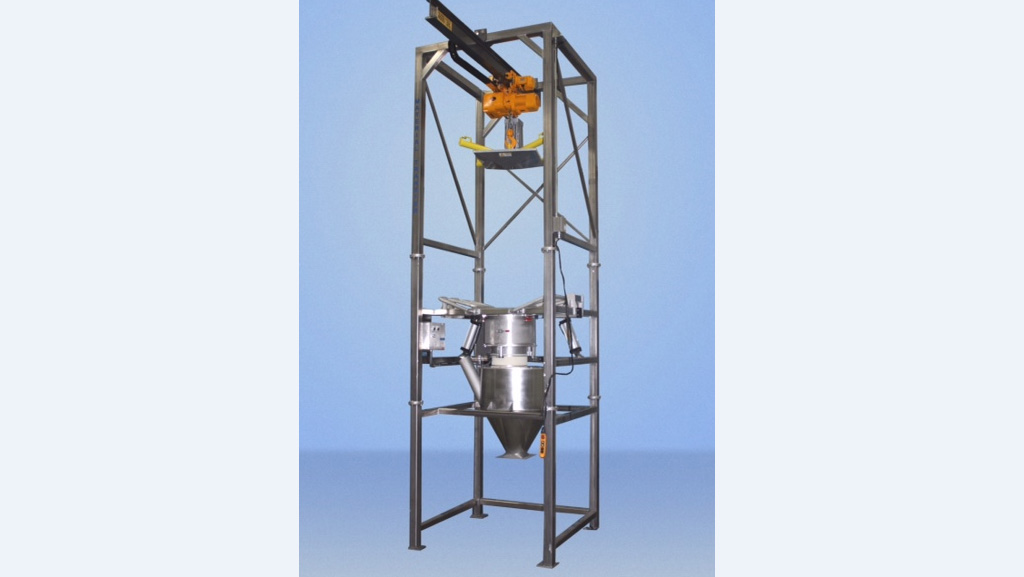

The Material Master bulk bag discharging system features an electric chain hoist with motorized trolley, monorail, and Spider-Lift bulk bag lifting frame with a debris catch pan. Equipment framework is constructed from 304 stainless steel structural tube, capped ends, continuously TIG welded. It features the Flo-Master bulk bag massaging system, the Flo-Lock discharge gate for partial bag discharging, the Seal-Master bag spout access chamber, and the Sure-Seal bag spout clamping system for dust-tight discharge. It includes a custom stainless steel discharge transition with a flexible connection to a 304 stainless steel surge hopper. The surge hopper has a 15 cubic ft. calculated capacity and a product return line for an existing dust collection system.
