Plain Bend Conveyors

April 19, 2021

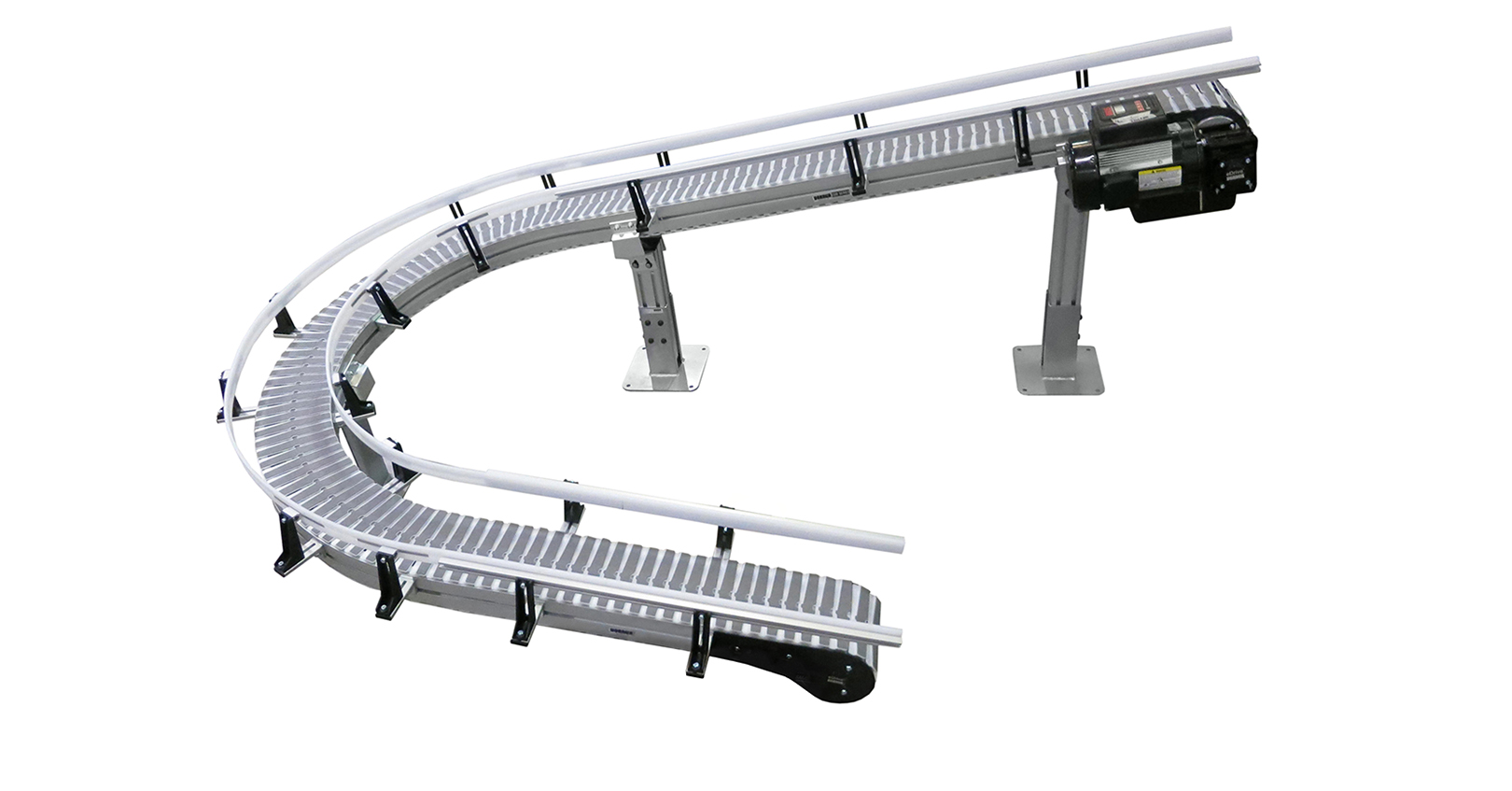

Dorner has introduced FlexMove Helical Plain Bend Conveyors for those applications that require conveyor flexibility, but with a small footprint to save floor space.

Dorner has introduced FlexMove Helical Plain Bend Conveyors for those applications that require conveyor flexibility, but with a small footprint to save floor space.

The conveyors provide unlimited configurations, including flat to flat; flat to incline or incline to flat; or incline to incline. These configurations, which also include inclines and declines through corners and straights, provide flexibility for applications involving product buffering, especially in corners. The conveyors also come with a patented side roller chain to reduce corner friction.

Features and specifications of the new FlexMove Helical Plain Bend Conveyors include:

• Available on FlexMove Conveyors: FS (65 mm); FM (85 mm); FC (105 mm); FL (150 mm); FU (180 mm); and FV (260 mm).

• Minimum 500 mm radius helical bend corner.

•Corner angles: 45°, 90°, 135°, 180°, 225°, 270°, and 360°.

•  Incline and decline angles up to 12°.

• Plain chain capable of incline / decline angles up to 7°.

• Friction chain recommended for angles of 7° to 12°.

• Available in bearing chain and non-bearing chain models.

• Load capacity for both: 300 lbs.

• Maximum speed for both: 180 feet per minute.
