Vibratory Conveyor with Monobeam Construction

Oct. 5, 2021

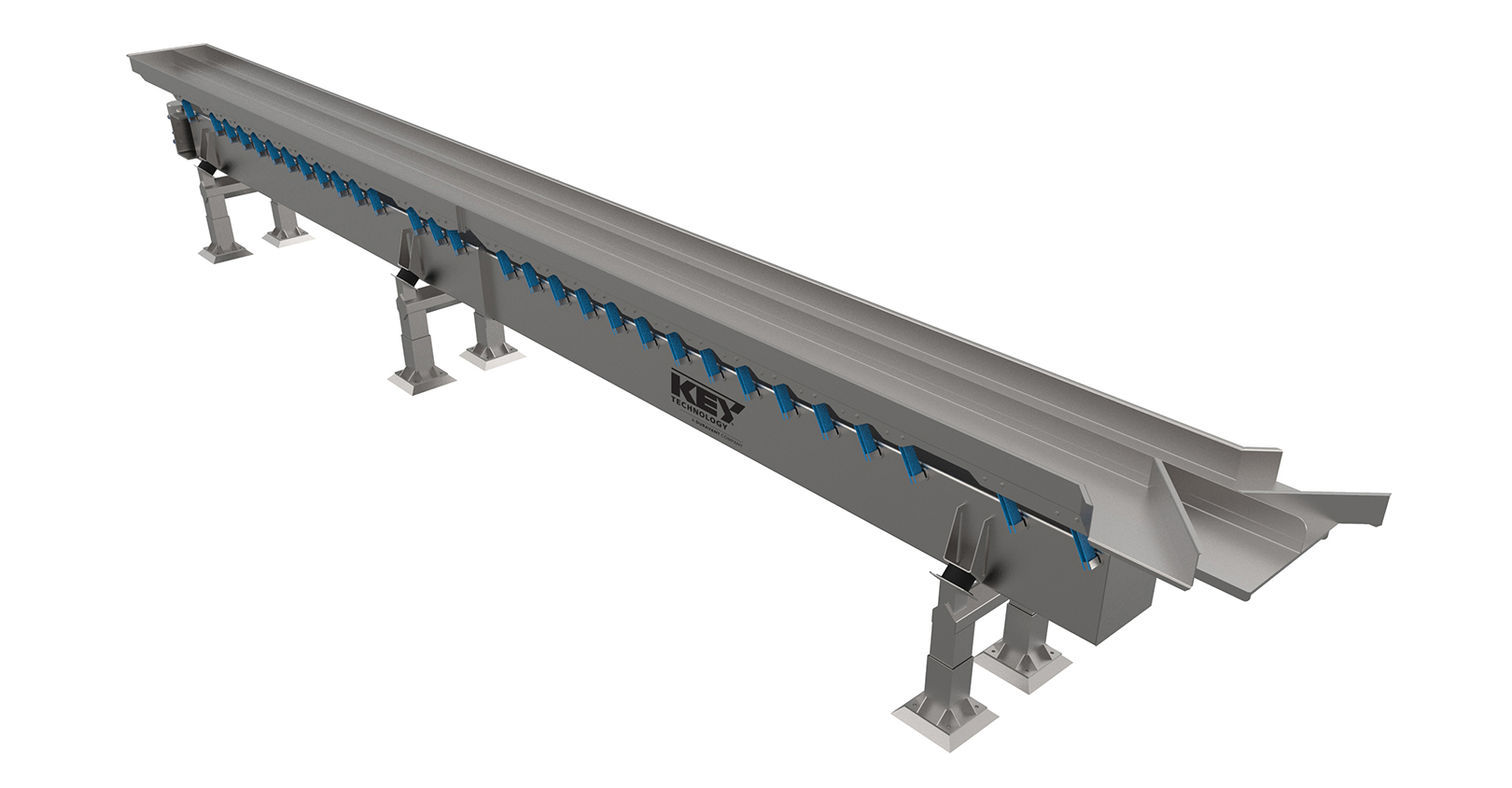

Key Technology's Marathon vibratory conveyors with monobeam construction feature a narrow frame to offer better access to the conveyor bed.

Marathon vibratory conveyors with monobeam construction feature a narrow frame to offer better access to the conveyor bed while reducing the number of parts to clean. Ideal for processors that need a high degree of equipment hygiene and/or a small footprint, the conveyor is suitable for a wide range of bulk food applications, from raw receiving to packaging, including product collection, transfer, and distribution.

All Marathon conveyors use natural-frequency vibratory motion to distribute bulk foods long distances on a single unit. Marathon can replace several shakers in a row, relying on only two independent, frame-mounted drives to improve efficiency and reliability.

Available in lengths from 30 to 50 ft and widths from 20 to 40 in., Marathon with monobeam can achieve conveying speeds greater than 50 ft/min, depending on the application. The conveyor bed can be tilted to draw product to one side and flow direction can be controlled with optional side outlet diverters.
