Garden Retailer’s Vertical Wrapper Shrinks Packaging Costs 45%

June 6, 2014
A home and garden retailer’s new multipack vertical shrink wrapping line also helped it cut labor 35% and improve pallet stacking density by 15%.

Retail marketing has the creativity to dream up the idea of turning an indoor store display into an outdoor one. Logistics packaging has the power to make that dream come true.

This happened when Central Garden & Pet Company decided to reposition the marketing of its Sevin dust insecticide for crop applications like edible fruits and vegetables.  A key focus of this campaign was to expand the placement of its one-pound packages to secondary displays in the outside edible plants section at nurseries, and lawn and garden centers.  To make the product packaging more weather-resistant for outside presentation, the company redesigned the container to a plastic bottle format, incorporating a plastic lid design that would not accumulate water, and label coding that is fade-resistant.  What remained was for its multipack packaging to be redesigned for outside display, which presented challenges.

Multipack Challenge

Sevin dust has been available in-store on shelves as a three-pack option to consumers for some time.  Three containers were packed in a corrugated tray, then shrink wrapped.  This worked fine so long as the product was displayed indoors.  But outside at nurseries, and lawn and garden centers, where water from rain and watering are constant environmental factors, the shrink wrapping was not able to stop water from reaching the corrugated tray, causing it to deteriorate, losing not only structural integrity but degrading the appearance of the product packaging.

Further, to comply with Federal regulations on insecticides, the consumer needs to be able to read language about product content, usage and contamination.  Because of the obstruction from the corrugated tray on the Sevin product multipacks, the information on the individual containers was difficult to read, requiring printing of the information on the bottom of the tray itself.  When the tray became damaged from water, however, this information could become impaired.

“Central Garden & Pet wanted to do away with the tray altogether,” said David Nettles with Associated Packaging (, a packaging systems integrator specializing in flexible packaging, which was brought on by Central Garden & Pet in early 2012 to help come up with a solution. “Associated Packaging suggested a shrink wrap material manufactured by Bemis Clysar (now Clysar, LLC, that was not only durable so it could withstand the elements, but it was also printable.  They were interested in printing the product information on the film, instead of the tray.”

“The company’s existing horizontal shrink wrapper, however, was unsuccessful in applying product information to the film,” continued Nettles. “Horizontal wrappers bring seal and aesthetic issues to vertical product packaging, therefore we recommended they go to a vertical shrink wrapping system.”

The Switch to Vertical Shrink

Texwrap Orbital Vertical System (OVS) shrink wrapper

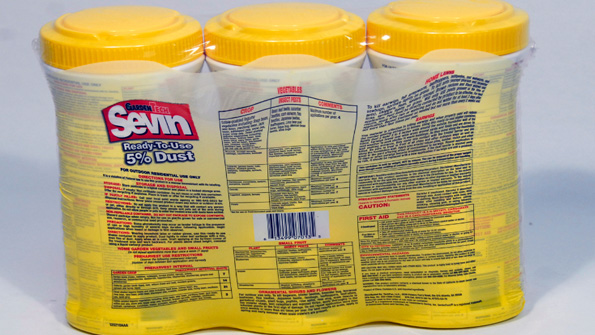

Associated Packaging specified a model 914 Orbital Vertical System (OVS) from Texwrap Packaging Systems (, which designs and manufactures fully-automatic shrink wrapping systems.  This shrink wrapper does not require a carrier tray to hold products in place while wrapping, and can use printed film to wrap the multipack.

The wrapper trims the film underneath the package, where it is hidden from view.  This offers more packaging opportunities for the Sevin product without compromising product presentation.  The wrapper has a mechanism that cuts and trims away the film in one action to create a full bottom trim seal to enclose the product, instead of the traditional lap seal with horizontal shrink wrappers.  This contributes to security and presentation.

“The seal is not interfering with readability,” said Daphne Huey with Central Garden & Pet.  “It is located so that the words and images fit around it.  We do not have to worry about the shrink drawing together at a certain point and making the information, graphics or UPC unreadable.  We still have the UPC on the original containers, but we have them covered up by graphics on the shrink wrap so that the bar codes on the containers do not read through.  This is just a much more consumer-friendly package because we have the entire shrink printed, from front to back.  It makes for a very attractive package.”

The sealing is done with a servo orbital-motion head, which eliminates the need for the head to move with the product while the seal is being made.  The head moves in an ellipse, without the back and forth motion of typical sealing heads, which reduces vibration, improving registration, and increases the throughput speed of the wrapper.

Another advantage of switching to a vertical wrapper for multipacking the Sevin product is infeed into the wrapper.  The company’s prior horizontal wrapper required that the containers, after filling, be manually laid down on their sides on a conveyor, and the carrier tray be manually put into position to hold the containers together, horizontally, during infeed.  This is typical with horizontal wrappers when handling vertically-oriented products for shrinking into multipacks.  With the vertical wrapper, however, the product containers go directly from the filler to the shrink infeed standing upright, where they are manually rotated into the proper position for input into the wrapper.

Although the vertical shrink line has a throughput capacity of 120 multipacks per minute, the line speed is set by the speed of filling, which is operating at 25 multipacks per minute.  The filling area is kept in a separate room, and 50 feet from the shrink wrapping system because of excessive dust.

From the shrink wrapper, the containers are put through a dual-chamber shrink tunnel to provide a controlled shrink, critical for achieving the precise placement of copy, graphics and UPC on the multipack.  The product is then moved on to cartoning and shipping.

Streamlined Multipack Metrics

Completed in January, 2013, the installation of the vertical wrapping line has brought into play several other key improvements in metrics for multipacking of the Sevin dust product.

“With the elimination of the corrugated tray, the company has realized a 45 percent reduction in packaging material costs,” explained Nettles.  “Because the tray is no longer being used, end-of-line packaging labor hours have also been reduced by 35 percent.”  Laborers are no longer needed to fold the corrugated trays, nor is manual placement required of the containers onto the trays before infeed.

Lastly, because the corrugated tray is now gone, so is the space that it occupied, one-half inch on each side.  This amounts to 15 percent more multipacks that can be loaded onto a pallet.

“The cut-down on the expense of our multipack shrink wrapping for the Sevin dust line is significant,” said Huey.  “It has expanded our merchandising options.”
