Ekko Ek18 Rr

Narrow-Aisle Reach Truck

March 25, 2020

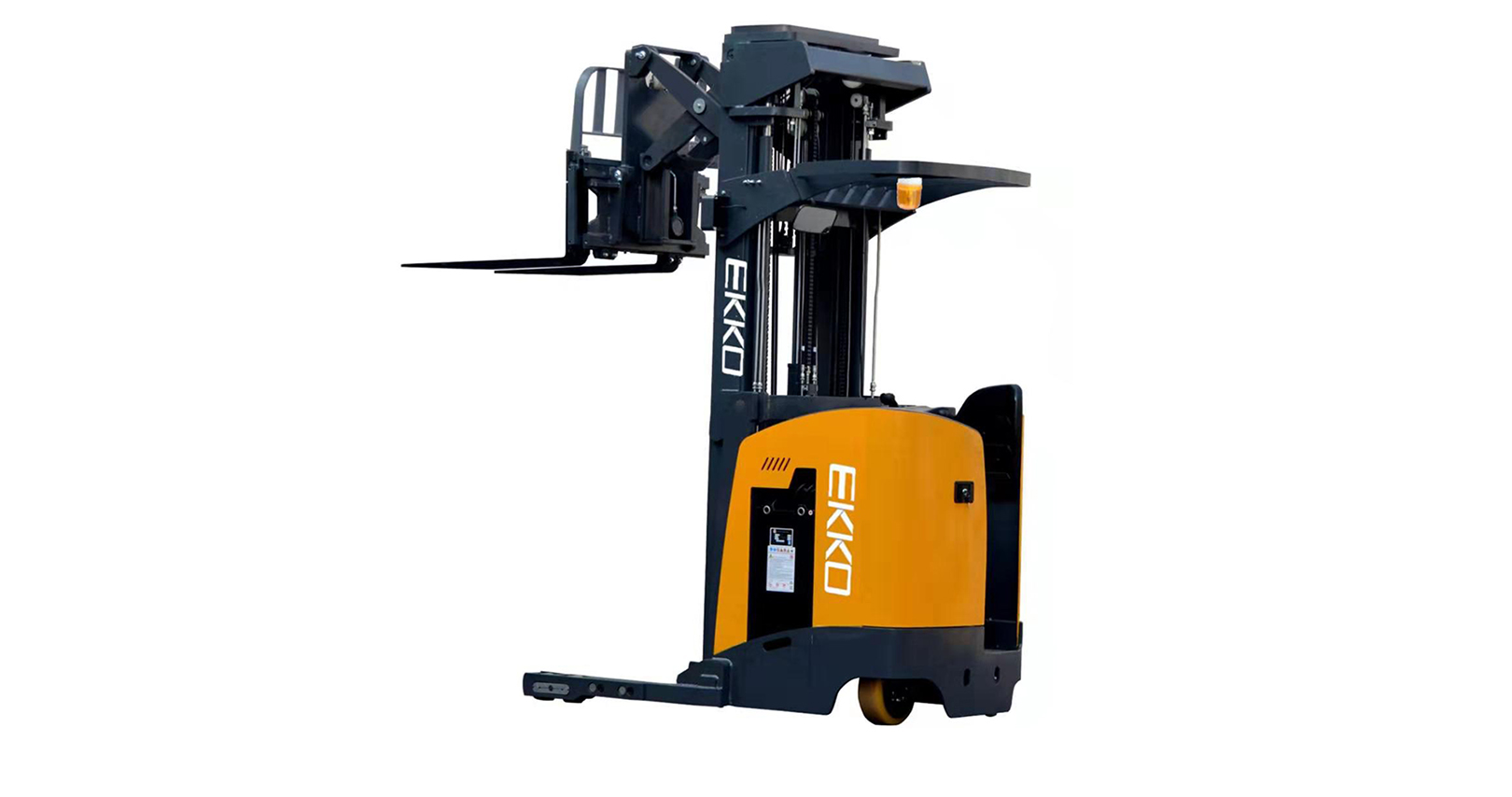

EKKO Lifts has introduced the EK18RR Rider Reach Truck, a narrow-aisle rider reach.

EKKO Material Handling Equipment Manufacturing Inc. (EKKO Lifts) has introduced the EK18RR Rider Reach Truck, a narrow-aisle rider reach.

Features of the new reach truck include:

• WEIGHT CAPACITY: 4,000 lbs. @ 24″ load center

• LIFT HEIGHT: 275” 3-stage

• SIDE SHIFTING FORKS: 45.3”

• MAST HEIGHT: 123”

• TURNING RADIUS: 75”

• FREE LIFT: 79”

• TILT: 2/4 degree

• INDUSTRIAL BATTERY / CHARGER: 48V 420Ah, industrial battery with external 210A 210VAC plug-in automatic, 48V/65A charger (both Included)

• BRAKING: Electromagnetic braking for secure stopping power

• SPEED TRAVEL: 5.9 mph empty; 5.59 mph loaded

• LIFTING SPEED: 9.05” ips empty; 7.48” ips loaded

• LOWERING SPEED: 11.81” ips empty; 9.05” ips loaded

• FRONT WHEELS: Polyurethane

• REAR WHEELS: Polyurethane

• HYDRAULICS LIFTING MOTOR: 48V 11000 watt lifting motor with hardened chrome-moly steel for durability

• DRIVE MOTOR: 48V 6000-watt German AC drive motor for efficiency and high torque

• AC CONTROLLER: 48V Curtis instrument controller which provides performance through the entire range of speed; constant travel speed regardless of load; battery discharge indicator combination gauge

• LIGHTING: LED headlights, turn signals and brake lights

• OPERATOR CONTROLS: Tilt, lifting, lowering, side shifting forks, horn functions are located in the ergonomic operators compartment

• CHASSIS AND MAST: Robotic welding; heavy-duty steel chassis with I-beam mast for durability; telescoping mast.

EKKO Material Handling Equipment Manufacturing Inc.
